Description
Description

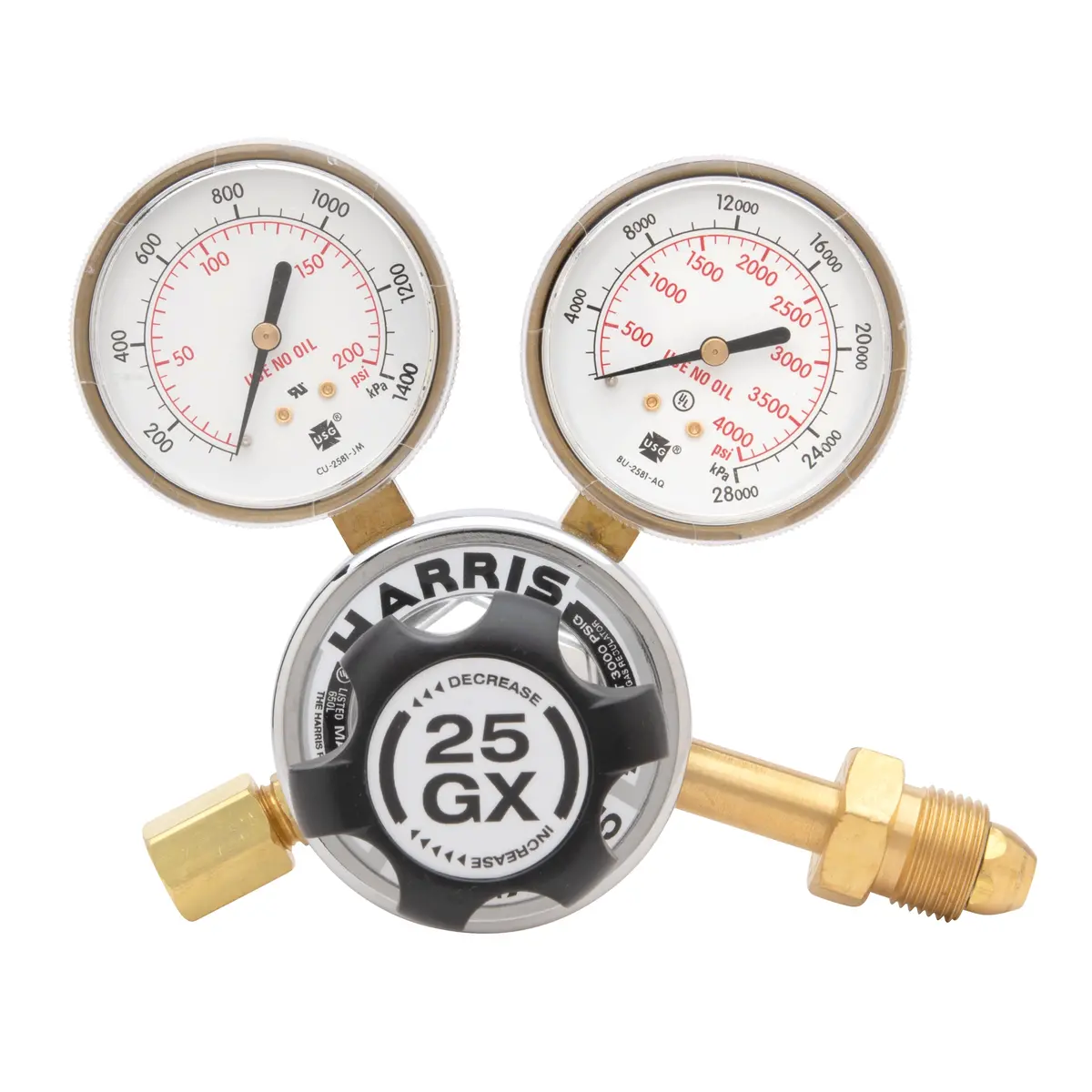

The 25GX is designed to be the next generation workhorse of the Harris industrial regulator line. It FEATUREs larger, easier to read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants. Supplied with 5/8″ – 18″ adaptor.
Features
- High end features for economical price
- Workhorse of Harris industrial regulator line
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body and chrome-plated zinc bonnet for longer service life
- Neoprene diaphragm for better pressure control
- 2.5″ Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- UL listed
Warranty
7 Years
Specifications
| Adjusting Knob | ABS plastic |
| Body | Brass |
| Bonnet | Chrome plated zinc |
| Certification | CGA E-4 UL® listed |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 200 |
| Delivery Pressure Range (PSIG) | 0 – 145 |
| Diaphragm | Neoprene |
| Duty | Medium to heavy |
| Gas / Gas Service | Argon Helium Nitrogen |
| Gauges | 2.5″ Steel dual scale |
| Inlet Connection | CGA 580 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Nozzle | Brass |
| Outlet Connection | 9/16″ – 18 RH** |
| Pressure Regulation PSIG/100 PSIG | 0.20 psig |
| Recommended Items/Accessories | Steel Gauge Guard – Red (Fuel) – PN 4300238 Steel Gauge Guard – Green (Oxygen) – PN 4300239 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
