Description
Description

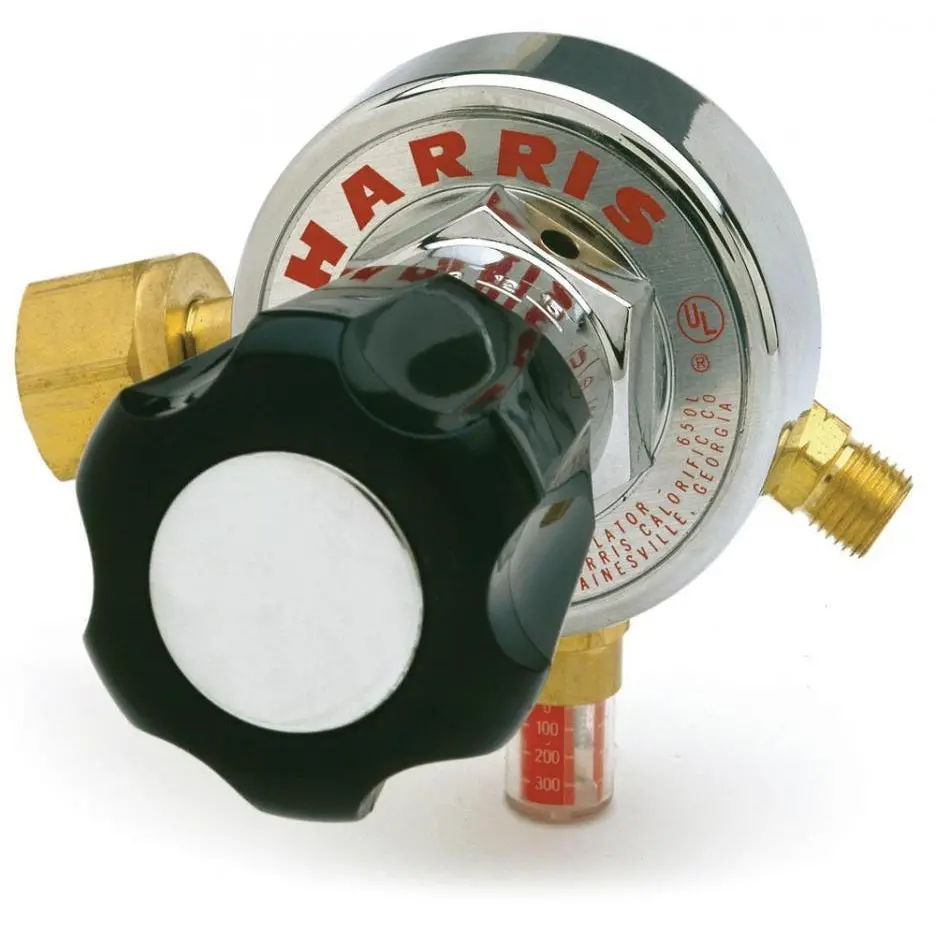

Model 29 Heavy duty Gaugeless regulator is specifically designed for use in installations where rough handling of gas apparatus is commonplace. The color coded cylinder contents indicator and the delivery pressure calibration on the bonnet are easy to read.
Features
- Heavy duty gaugeless regulator designed for use in abusive conditions
- Easy-to-view color-coded cylinder contents indicator
- Delivery calibration on the bonnet is easy-to-read
- Brass body and chrome-plated zinc bonnet for longer service life
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- No gauge
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Neoprene diaphragm for better pressure control
- UL listed
- Made in the USA
- 7 year warranty
Specifications
General Equipment
| Adjusting Knob | ABS plastic |
| Body | Chrome-plated brass |
| Bonnet | Chrome-plated zinc die cast |
| Certification | CGA E-4 UL listed |
| Cv | 0.17 |
| Delivery Range | 0 – 100 |
| Diaphragm | Neoprene |
| Duty | Heavy |
| Gas / Gas Service | Argon (Ar) Helium (He) Nitrogen (N2) |
| Gauges | Gaugeless |
| Inlet Connection | CGA 580 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Outlet Connection | 9/16″ – 18 RH |
| Pressure Regulation PSIG/100 PSIG | 0.20 |
| Seat | PTFE Teflon |
