Hypertherm Powermax 45A Flush-Cut Consumable Starter Kit (Part #428746)

Description

Description

The patented consumable design for FlushCut features an angled nozzle bore design which delivers the plasma arc at a 45 degree angle  essentially bending the plasma arc. This unique design gives Powermax users the ability to cut closer or more flush to the base than ever before which significantly reduces grinding and increases the opportunity to reuse pad eyes, attachments and other temporary weld supports.

This kit will work with Duramax Torches found on: Powermax 45XP, 65, and 85.

• Reduces grinding

• 45 Degree angle arc allows for greater reuse of attachments

• More efficient than oxy-fuel and carbon arc gouging

• Can be used with hand or mechanized torches

Specifications

Click the image below to view the full spec sheet

Consumable Chart

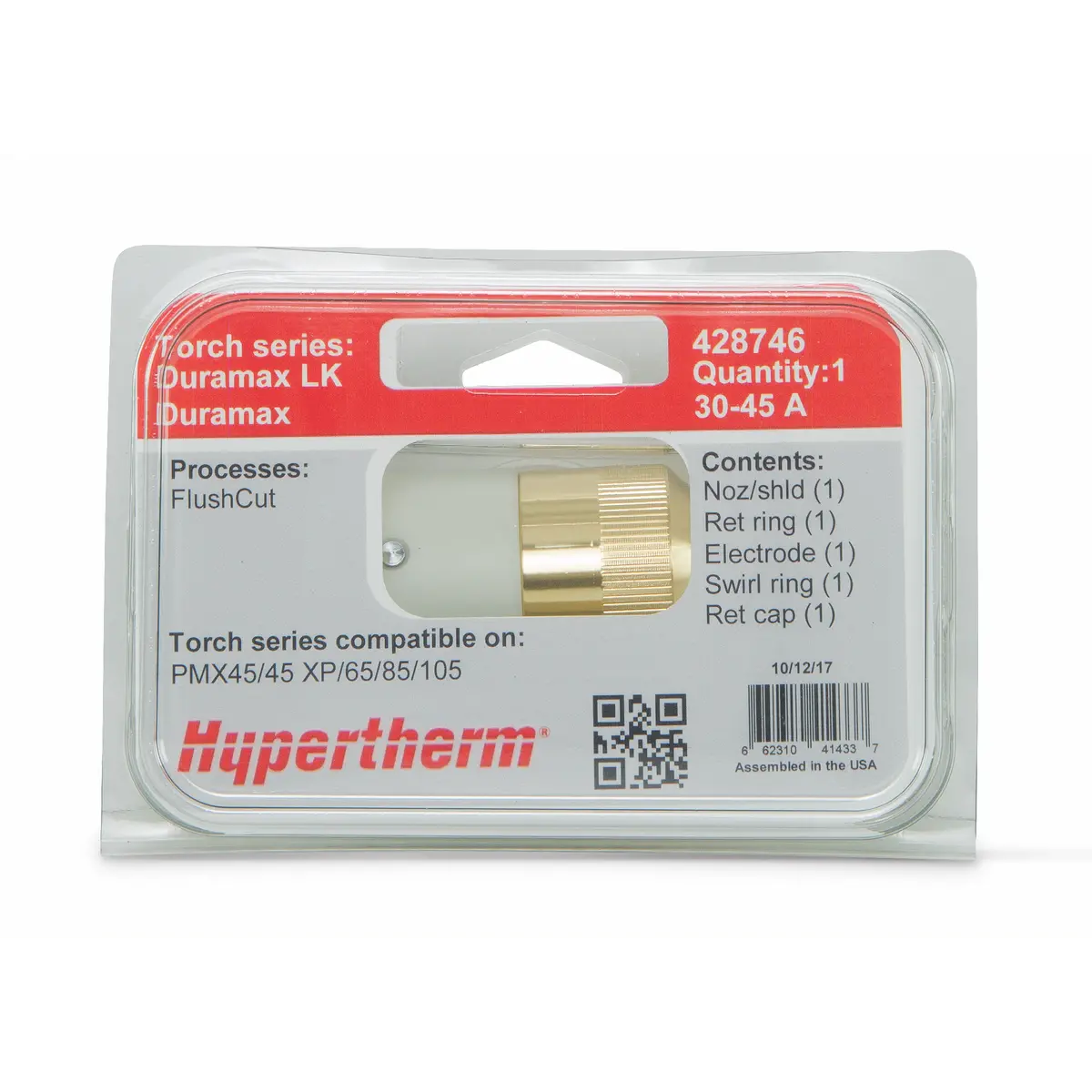

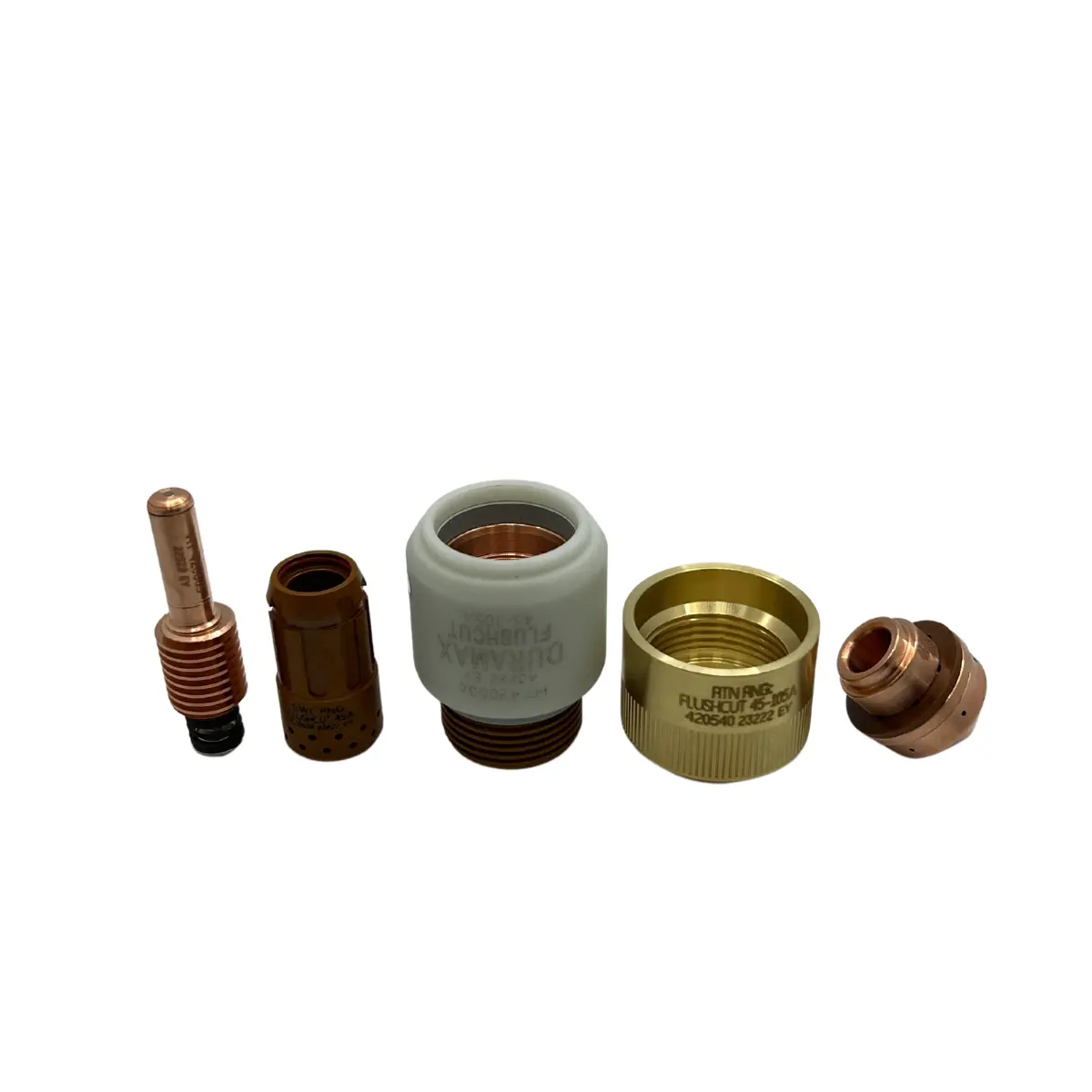

Included with Product

(1) Retaining Ring – 420540

(1) Retaining Cap – 420536

(1) Nozzle/Shield – 420633

(1) Swirl Ring – 420634

(1) Electrode – 420635

Plastic Storage Case

FlushCut Demo Video
