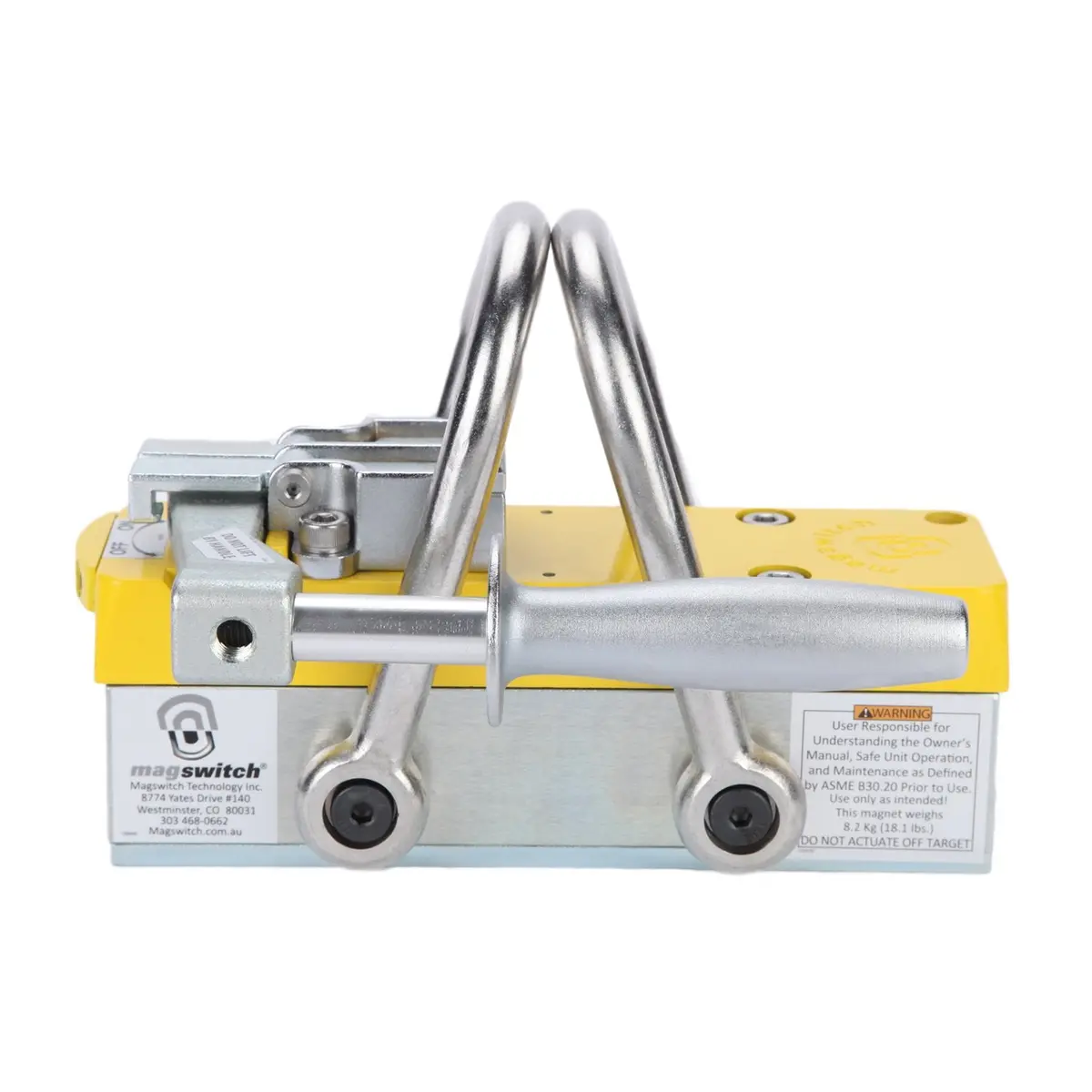

The Magswitch MLAY600x4 is built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in both the On and Off position with a safe working load of 762 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.
- Most powerful shallow-field lifter.
- Superior hold force on Thin steel (50mm shallow field).
- Compact, light weight and easy actuation.
- Pivoting Hook allows lift from horizontal to vertical.
- Pole Shoes – replaceable for long life, or make custom shoes match to target.
- Lock on/ off handle.
- Lifts Flat or Pipe.
- Superior performance in the presence of air gaps such as rust, paint and uneven surfaces.
- Better performance on thin steel allows Ma
Specifications
- Max Breakaway: 2285 lbs/1036 kg
- Safe Working Load: 762 lbs/346 kg
- Full Saturation Thickness: 1/2” / 9.5mm
- Max Safe Shear: 330 lbs/150 kg
- Minimum Thickness for De-Stack: 1/2” / 9.5mm
- Net Weight: 17.9 lbs/8.1 kg
- Mounting Thread: M6x1.0
- Overall Height: 166.47 mm
- Magnetic Pole Footprint: 223mm x 71.12mm
