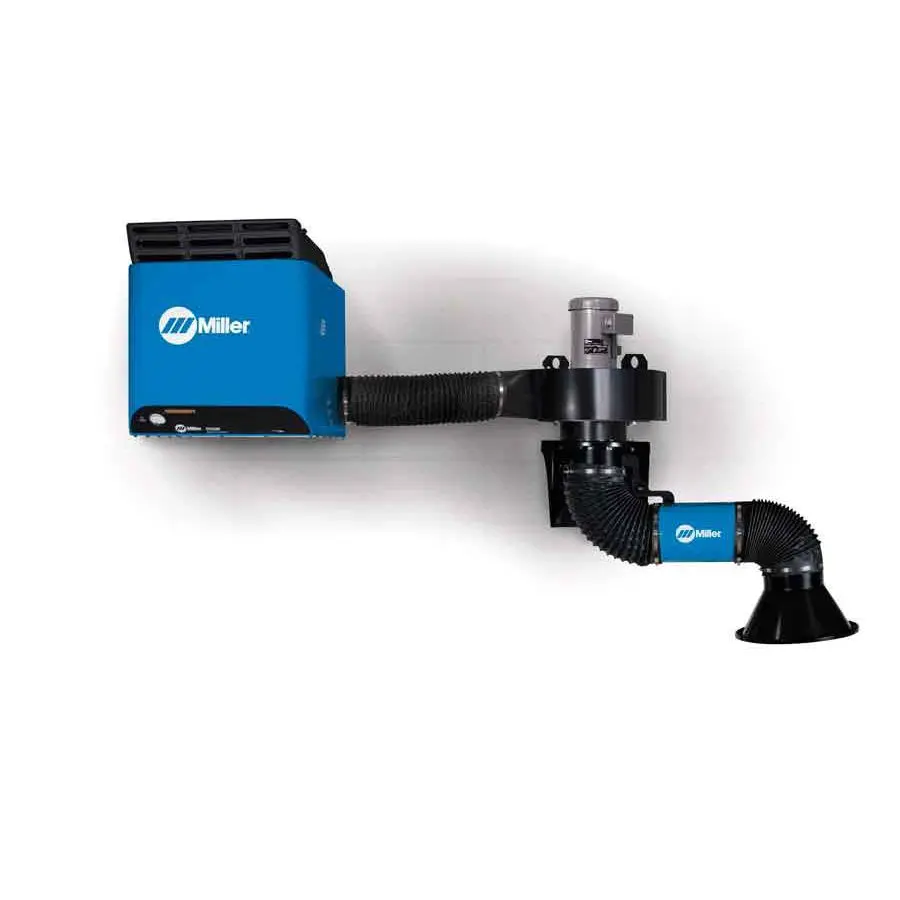

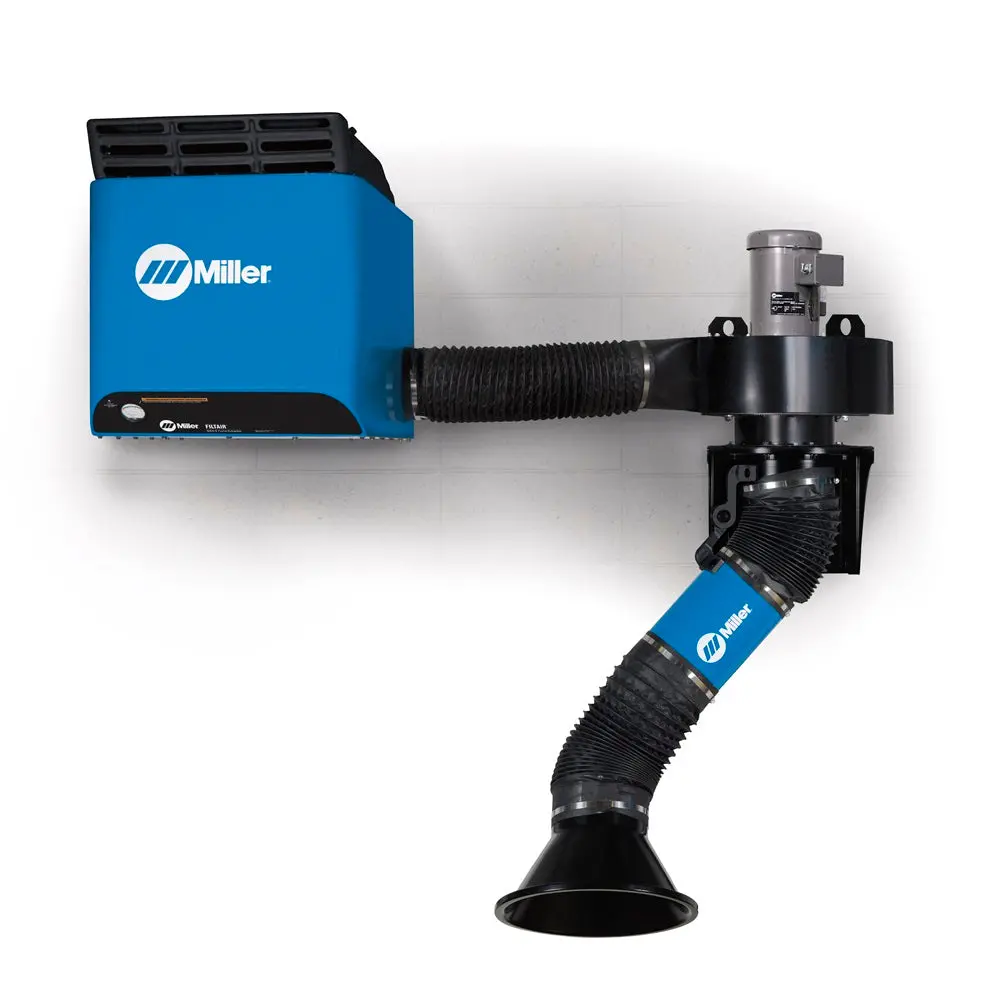

The Filtair SWX-D Series Fume extractors can be wall or column mounted, for environments with weld areas that need filtration but do not have extensive floor space. Accu-Rated Airflow at 875 CFM with approx 75 dBA at 5′. These models include a disposable filter.
Easy-to-Use Telescoping Arm
Ideal for small spaces and offers reliable and accurate positioning across the full range of motion of the arm. Easy adjustments and maintenance ensures long-lasting operation. Pre-assembled telescoping arms can extend from 3 to 4.5 feet.
Durable Bellmouth-Shaped Hood
Features a convenient 360 degree rotation for unlimited positioning. One of the largest in the industry, FILTAIR’s extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means less hood adjustments for longer welds.
FilTek® XL Filter Technology
FilTek XL Filter Technology is specifically designed for welding fumes. This technology offers a longer filter life – up to 2 times that of treated cellulous filters and superior filtering of up to 95% of weld fume particulate.
MERV 15 Filter Rating
Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles-such as those found in weld fumes.
Disposable Filter Model
The disposable filter model works great for light duty and intermittent welding operations.
Class Leading Suction Power
High-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.
FILTAIR® SWX System Arm Add-On Packages
Easy to order and allow the flexibility to mix different arm types to solve various fume extraction challenges (See accessories on specification sheet).
Included with Product
- 8 in. diameter telescoping arm (3-4.5 ft.)
- Flexible duct (7 x 37 in.)
- Mounting bracket for blower/arm
- 115 V on/off control box
- 115 V blower
- FilTak XL Filter
- SWX disposable filter cabinet
