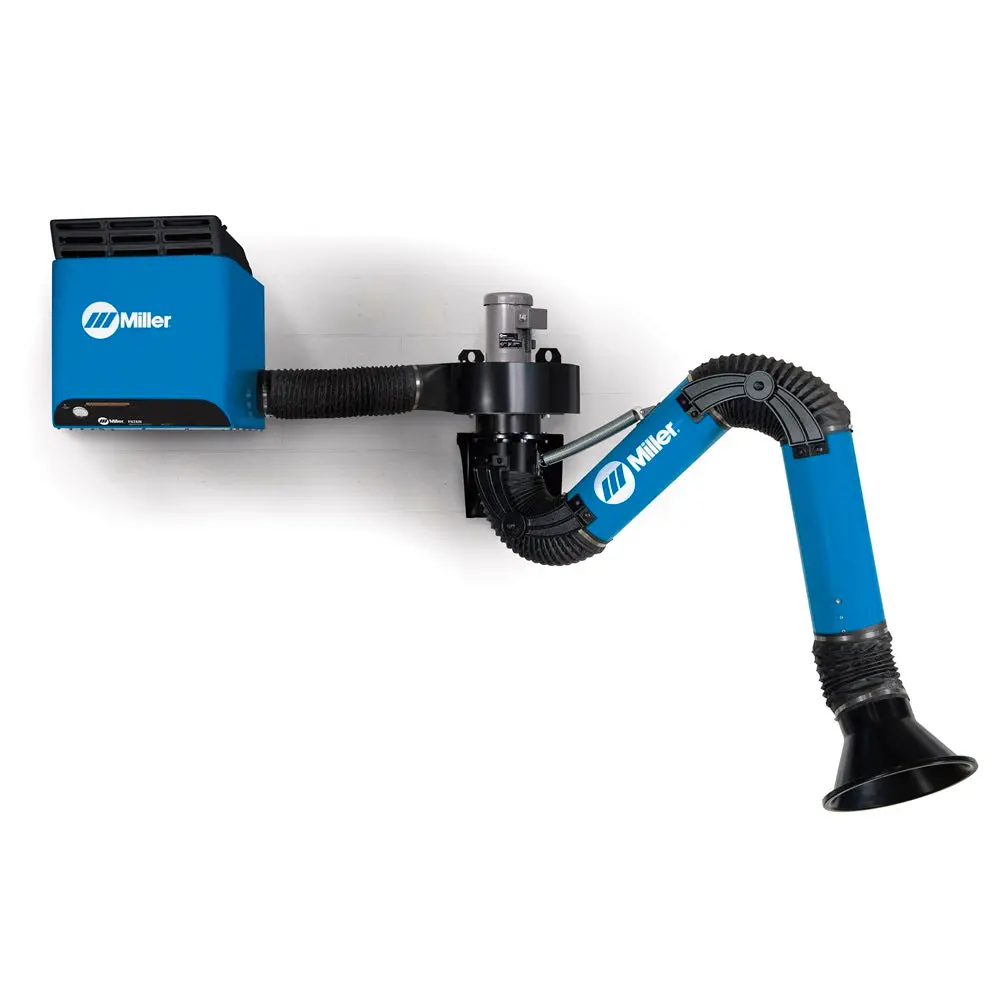

Wall or column-mounted weld fume extraction system designed specifically for welding. This system features class-leading suction power resulting in unrivaled filtering performance, ideal for manufacturing, fabrication shops, and training centers.
Easy-to-Operate Standard Arm
Featuring external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Pre-assembled extraction arms are available in 7, 10, or 12 foot lengths.
Durable Bellmouth-Shaped Hood
Features a convenient 360 degree rotation for unlimited positioning. One of the largest in the industry, FILTAIR’s extraction hood captures weld fumes at a greater distance from the source than other hood designs. This also means less hood adjustments for longer welds.
FilTek® XL Filter Technology
FilTek XL Filter Technology is specifically designed for welding fumes. This technology offers a longer filter life – up to 2 times that of treated cellulous filters and superior filtering of up to 95% of weld fume particulate.
MERV 15 Filter Rating
Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles-such as those found in weld fumes.
Disposable Filter Model
The disposable filter model works great for light duty and intermittent welding operations.
Class Leading Suction Power
High-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.
FILTAIR® SWX System Arm Add-On Packages
Easy to order and allow the flexibility to mix different arm types to solve various fume extraction challenges (See Accessories on specification sheet).
Included with Product
- 8 in. diameter x 12 ft. standard fume extraction arm
- Flexible duct (7 x 37 in.)
- Mounting bracket for blower/arm
- 115 V on/off control box
- 115 V blower
- FilTek XL Filter
- SWX disposable filter cabinet
Not Included: 115 V wiring
